Wood (autumn)

Contact: Francois Pomerleau
f.pomerleau [at] gmail [dot] com
Date: Dec 9, 2011
Place: Universitätspital Park, Zurich, Switzerland
Situation: Outdoors
Environments: Unstructured (mainly vegetation)
Dynamics: People walking and seasonal changes
Scanner path: Slightly 3D before following a road
Re-localization: 0
Number of scan: 32
Avg. points/scan: 178 000
Path bounding box: 6 x 12 x 0.5 m
Scene bounding box: 36 x 60 x 22 m

This environment is mainly constituted of vegetation (tree, bushes, etc). The only structured element is a small paved road that crosses the wood. The scanner path starts in the wood and continues for approximately 12 scans before joining the small road (see Contextual Photographs).

The main motivation for this dataset is to evaluate robustness of registration algorithm to unstructured environment. Some people were walking on the road while recording. The complete representation can also be compared with Wood in summer to highlight the global (seasonal) modification of the environment.

Notes: The sun sets early and the pictures taken are darker at the end.

Citation

F. Pomerleau, M. Liu, F. Colas, and R. Siegwart, Challenging data sets for point cloud registration algorithms, International Journal of Robotic Research, vol. 31, no. 14, pp. 1705–1711, Dec. 2012. bibtex, Publisher Link

Environment Topology

Manually drew map. The photo poses number correspond to the ones used in Contextual Photographs.

Contextual Photographs

You can use right and left arrows keys to navigate once you click on a picture. Number in the photo titles correspond the those used in the Environment Topology section (click on the photo to see the numbers).

Screenshots

Point Cloud Views

Top view of the wood with the upper part of the vegetation removed to ease visualization:

Scan sequence with the upper part of the vegetation removed to ease visualization:

(If Flash is installed, you can watch a video inside this web page.)

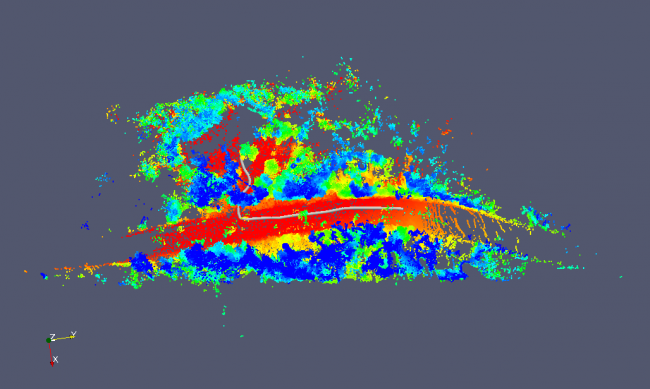

Side view of the dataset with the small road (in red) passing through the vegetation:

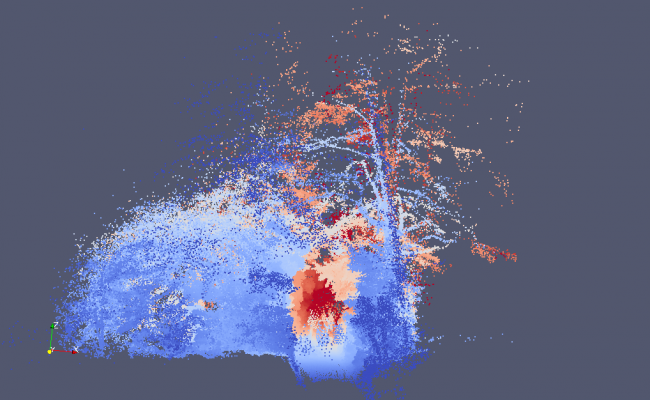

Example of a seasonal change - a big tree without leaves (point cloud manually extracted):

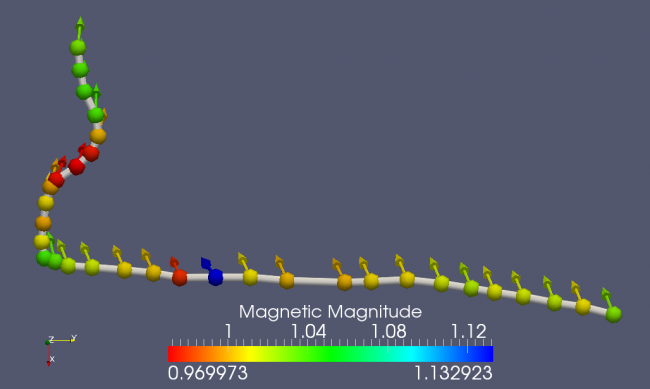

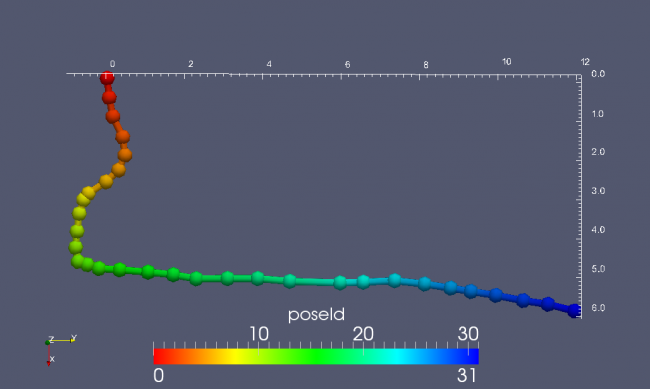

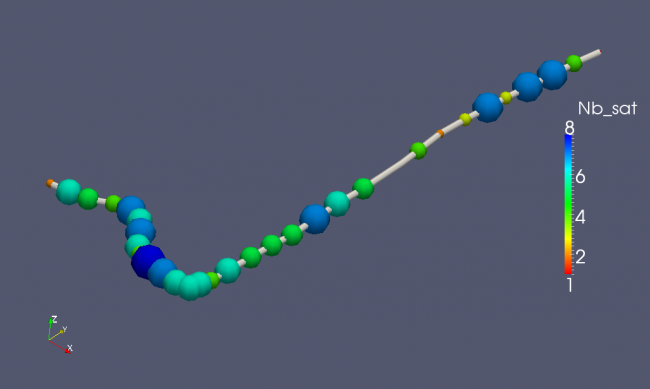

Scanner Poses

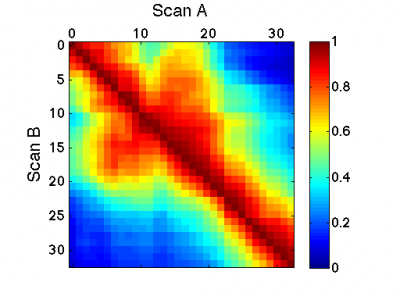

Overlap between each scan. The graph can be read as the percentage of points in Scan A that are also in Scan B. The overlap matrix can be downloaded in the section Download Point Clouds in Global Frame as a csv file.

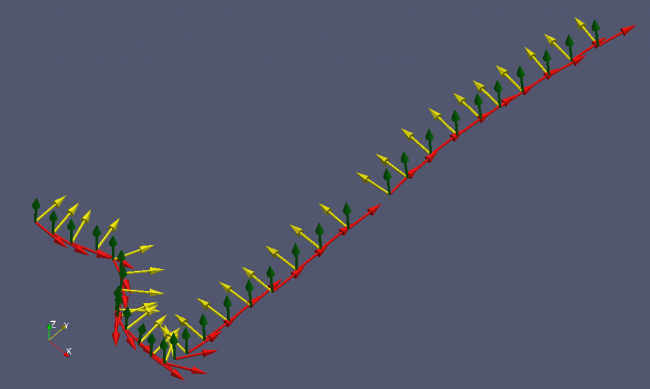

Scanner Orientation

Magnetic North

Gravity

Number of Detected Satellites

Downloads

All file contents and headers are explained on the page Tilting Laser - File Formats.

Point Clouds in Base Frame

Point clouds of this section have their origin at the scanner center. 2D scans have been transformed using the axis encoder to produce consistent 3D point clouds. The supporting data (Gravity, Magnetic North and GPS) have been recorded while the scanner was rotating. If you do not wish to compute statistics for the supporting data, you can go to the section Point Clouds in Global Coordinates were single measurements have been selected per pose. The “ground truth” poses can also be downloaded in the section Point Clouds in Global Coordinates.

All csv files have a header explaining each column and consistent timestamps.

Download all local files: local_frame.zip (129 MB) local_frame.tar.gz (129 MB)

- or -

Select the specific csv file you want here.

For Matlab users:


Point Clouds in Global Frame

Point clouds of this section have been moved to a global reference frame where the pose of the first 3D scan is the origin. The supporting data (Gravity, Magnetic North and GPS) have been post-processed to have only one reading per 3D scan.

All csv files have a header explaining each column and consistent timestamps.

Download all global files: global_frame.zip (104 MB) global_frame.tar.gz (104 MB)

- or -

Select the specific csv file you want here or in the list below:

For Matlab users:


Visualization Files

File type chosen for visualization is VTK legacy in ASCII format. We suggest to use Paraview to view the files because it can be freely downloaded for Windows, Mac and Ubuntu user and it's supported by Kitware. All screenshots of this page were realized using this software. You can download it here: http://www.paraview.org/

Download all local files: vtk_global.zip (105 MB) vtk_global.tar.gz (105 MB)

- or -

Select the specific vtk file you want here or in the table below:

  • Sequence of poses with supporting data attached to them: path.vtk (8.0 KB)
  • Post-processed global map (scanner removed, lower density of points, shadow points removed): globalMap.vtk (46 MB)

Raw Data

This type of data can be useful if you want to do some preprocessing on the 2D scans directly. We used ROS (www.ros.org) as middleware so the raw recordings can be downloaded and playback using rosbag. One rosbag has been recored per 3D scan. The ground truth poses are not available in the rosbags.

For more information on how to use this format see: www.ros.org/wiki/rosbag

Here is the output of rosbag info for the first scan. All scans have roughly the same number of messages

path:        0-Tiltlaser.bagversion:     2.0
duration:    17.6s
start:       Dec 09 2011 15:46:40.87 (1323442000.87)
end:         Dec 09 2011 15:46:58.45 (1323442018.45)
size:        1.4 MB
messages:    4125
compression: none [2/2 chunks]
types:       geometry_msgs/TwistStamped   [98d34b0043a2093cf9d9345ab6eef12e]
             geometry_msgs/Vector3Stamped [7b324c7325e683bf02a9b14b01090ec7]
             sensor_msgs/Imu              [6a62c6daae103f4ff57a132d6f95cec2]
             sensor_msgs/LaserScan        [90c7ef2dc6895d81024acba2ac42f369]
             sensor_msgs/NavSatFix        [2d3a8cd499b9b4a0249fb98fd05cfa48]
             tf/tfMessage                 [94810edda583a504dfda3829e70d7eec]
             xsens_mtig/GPSInfoStatus2    [b43aadd9fb237c1b978f00a668605345]
             xsens_mtig/Thermistor        [1a7c01d7f495652f5c21d90276c66498]
topics:      /gravity_vector    359 msgs    : geometry_msgs/Vector3Stamped
             /imu_data          359 msgs    : sensor_msgs/Imu
             /info_gps          359 msgs    : xsens_mtig/GPSInfoStatus2
             /magnetic_vector   359 msgs    : geometry_msgs/Vector3Stamped
             /position_gps      359 msgs    : sensor_msgs/NavSatFix
             /scan              179 msgs    : sensor_msgs/LaserScan
             /temperature       718 msgs    : xsens_mtig/Thermistor
             /tf                715 msgs    : tf/tfMessage
             /velocity          718 msgs    : geometry_msgs/TwistStamped

Download all bags files: rosbags.zip (15.6 MB), rosbags.tar.gz (15.5 MB)

- or -

Select the specific bag you want here.
