Apartment

Contact: Francois Pomerleau
f.pomerleau [at] gmail [dot] com
Date: Dec 3, 2011
Place: Kilchberg, Zurich, Switzerland
Situation: Indoors
Environments: Structured
Dynamics: Furnitures moved in between scans
Scanner path: On a 2D plane with some small loops
Re-localization: 2
Number of scan: 45
Avg. points/scan: 365 000
Path bounding box: 5 x 5 x 0.06 m
Scene bounding box: 17 x 10 x 3 m

This dataset was recorded with the intention to test registration algorithm robustness against outliers created by dynamic elements. The dynamic elements were moved in between scans (as opposed to during a scan). The complexity of the environment is relatively low given the high level of structure (walls, celling and floor). The opposite of a high structure level would be fond in a low-constrained environment, such as in a mountain plain. Multiple reflective surfaces can be found in this data set. Most of them are highlighted in the section Environment Topology.

Here is the list of elements moved during the recording (see Contextual Photographs):

  • A big blue box is placed in front of the entrance door
  • A person sat on the couch of the living room
  • A small red box is place in the hallway
  • A chair is moved from under a table to the front of a window in the office
  • A small red box is placed against a wall in the office
  • A shirt is put on the floor in the bedroom
  • A drawer is opened in the bedroom
  • The bath curtain is closed in the bathroom

Citation

F. Pomerleau, M. Liu, F. Colas, and R. Siegwart, Challenging data sets for point cloud registration algorithms, International Journal of Robotic Research, vol. 31, no. 14, pp. 1705–1711, Dec. 2012. bibtex, Publisher Link

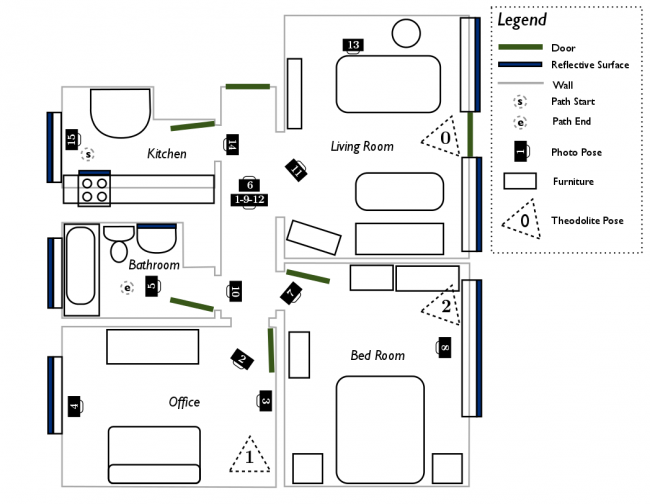

Environment Topology

Manually drew map. The photo poses number correspond to the ones used in Contextual Photographs.

Contextual Photographs

You can use right and left arrows keys to navigate once you click on a picture. Number in the photo titles correspond the those used in the Environment Topology section (click on the photo to see the numbers).

Screenshots

Point Cloud Views

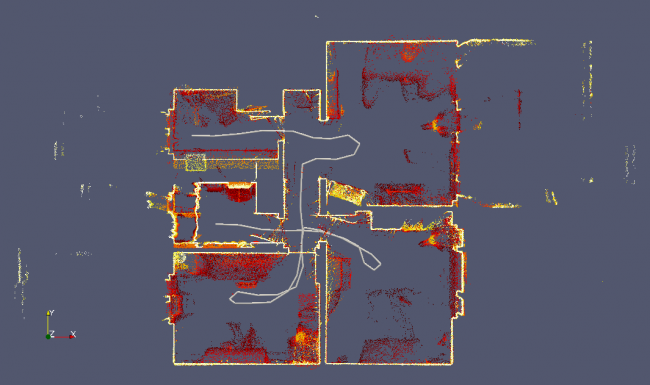

Top view of the apartment with the celling removed:

Scan sequence:

(If Flash is installed, you can watch a video inside this web page.)

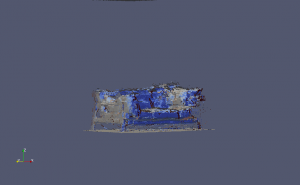

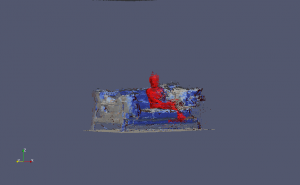

Example of an element added - a person on the couch (point cloud manually extracted):

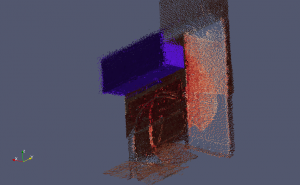

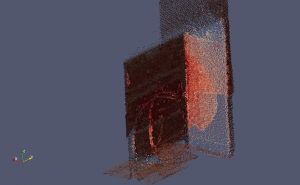

Example of an element moved - a drawer in and out (point cloud manually extracted):

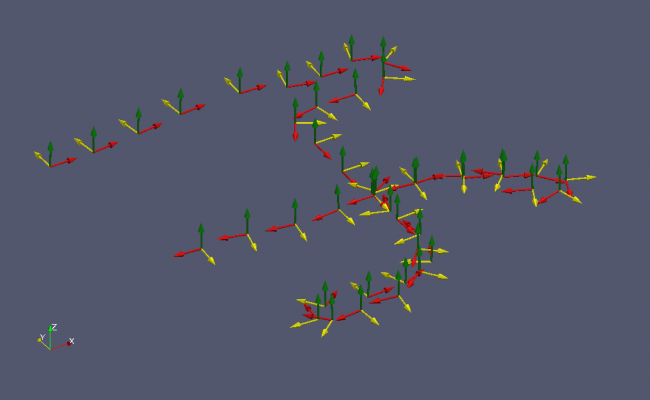

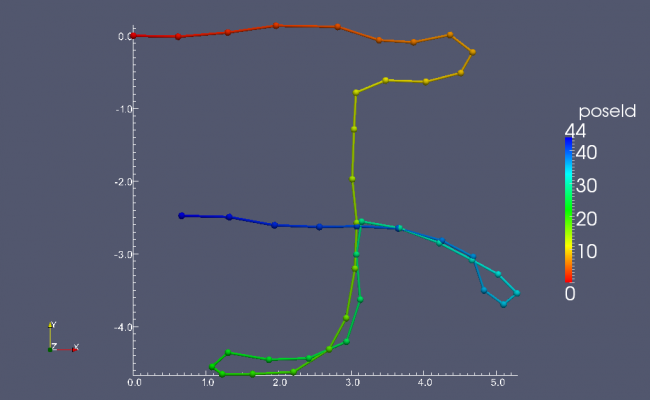

Scanner Poses

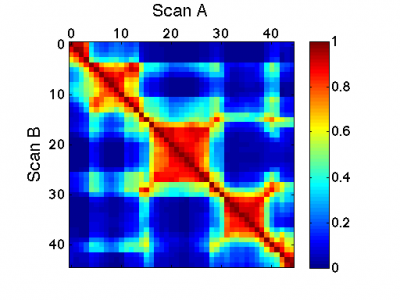

Overlap between each scan. The graph can be read as the percentage of points in Scan A that are also in Scan B. The overlap matrix can be downloaded in the section Download Point Clouds in Global Frame as a csv file.

Scanner Orientation

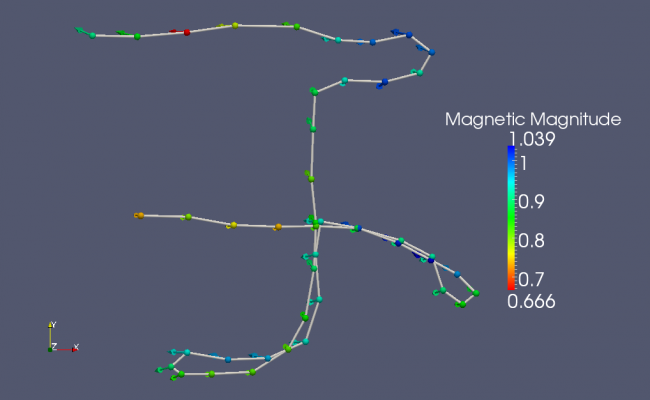

Magnetic North

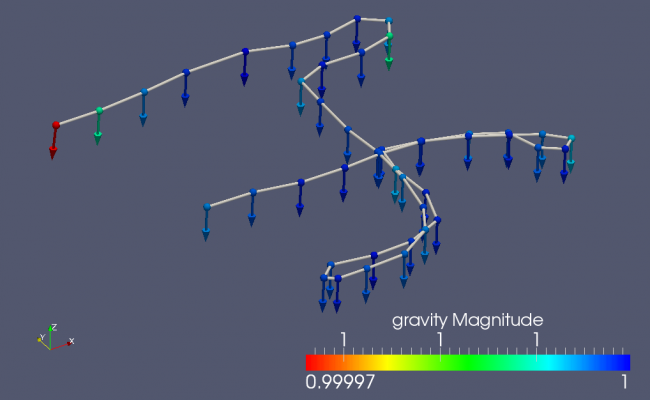

Gravity

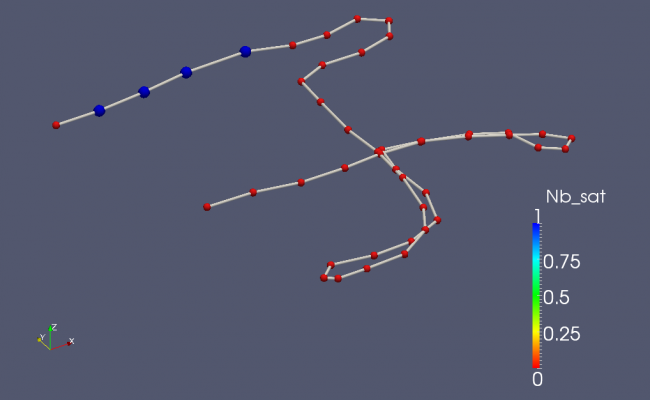

Number of Detected Satellites

Downloads

All file contents and headers are explained on the page Tilting Laser - File Formats.

Point Clouds in Base Frame

Point clouds of this section have their origin at the scanner center. 2D scans have been transformed using the axis encoder to produce consistent 3D point clouds. The supporting data (Gravity, Magnetic North and GPS) have been recorded while the scanner was rotating. If you do not wish to compute the statistics for the supporting data, you can go to the section Point Clouds in Global Coordinates were single measurements have been selected per pose. The “ground truth” poses can also be downloaded in the section Point Clouds in Global Coordinates.

All csv files have a header explaining each column and consistent timestamps.

Download all local files: local_frame.zip (362 MB) local_frame.tar.gz (362 MB)

- or -

Select the specific csv file you want here.

For Matlab users:


Point Clouds in Global Frame

Point clouds of this section have been moved to a global reference frame where the pose of the first 3D scan is the origin. The supporting data (Gravity, Magnetic North and GPS) have been post-processed to have only one reading per 3D scan.

All csv files have a header explaining each column and consistent timestamps.

Download all global files: global_frame.zip (291 MB) global_frame.tar.gz (291 MB)

- or -

Select the specific csv file you want here or in the list below:

For Matlab users:

—-

Visualization Files

File type chosen for visualization is VTK legacy in ASCII format. We suggest to use Paraview to view the files because it can be freely downloaded for Windows, Mac and Ubuntu user and it's supported by Kitware. All screenshots of this page were realized using this software. You can download it here: http://www.paraview.org/

Download all local files: vtk_global.zip (270 MB) vtk_global.tar.gz (270 MB)

- or -

Select the specific vtk file you want here or in the table below:

  • Sequence of poses with supporting data attached to them: path.vtk (11 KB)
  • Post-processed global map (scanner removed, lower density of points, shadow points removed): globalMap.vtk (32 MB)

Raw Data

This type of data can be useful if you want to do some preprocessing on the 2D scans directly. We used ROS (www.ros.org) as middleware so the raw recordings can be downloaded and playback using rosbag. One rosbag has been recored per 3D scan. The ground truth poses are not available in the rosbags.

For more information on how to use this format see: www.ros.org/wiki/rosbag

Here is the output of rosbag info for the first scan. All scans have roughly the same number of messages

path:        0-Tiltlaser.bag
version:     2.0
duration:    35.5s
start:       Dec 03 2011 18:13:52.77 (1322932432.77)
end:         Dec 03 2011 18:14:28.27 (1322932468.27)
size:        2.6 MB
messages:    8180
compression: none [4/4 chunks]
types:       geometry_msgs/TwistStamped   [98d34b0043a2093cf9d9345ab6eef12e]
             geometry_msgs/Vector3Stamped [7b324c7325e683bf02a9b14b01090ec7]
             sensor_msgs/Imu              [6a62c6daae103f4ff57a132d6f95cec2]
             sensor_msgs/LaserScan        [90c7ef2dc6895d81024acba2ac42f369]
             sensor_msgs/NavSatFix        [2d3a8cd499b9b4a0249fb98fd05cfa48]
             tf/tfMessage                 [94810edda583a504dfda3829e70d7eec]
             xsens_mtig/GPSInfoStatus2    [b43aadd9fb237c1b978f00a668605345]
             xsens_mtig/Thermistor        [1a7c01d7f495652f5c21d90276c66498]
topics:      /gravity_vector     711 msgs    : geometry_msgs/Vector3Stamped
             /imu_data           711 msgs    : sensor_msgs/Imu
             /info_gps           711 msgs    : xsens_mtig/GPSInfoStatus2
             /magnetic_vector    711 msgs    : geometry_msgs/Vector3Stamped
             /position_gps       711 msgs    : sensor_msgs/NavSatFix
             /scan               345 msgs    : sensor_msgs/LaserScan
             /temperature       1422 msgs    : xsens_mtig/Thermistor
             /tf                1436 msgs    : tf/tfMessage
             /velocity          1422 msgs    : geometry_msgs/TwistStamped

Download all bags files: rosbags.zip (39.6 MB), rosbags.tar.gz (39.5 MB)

- or -

Select the specific bag you want here.
